Adopting theDelta-sigma analog-to-digital conversion and digital filter processing technology. It is very easy to build a master/slave controlling system via RS232/485 serial port with HMI and PLC
Technical parameters
|
Division |
100,000 |
|

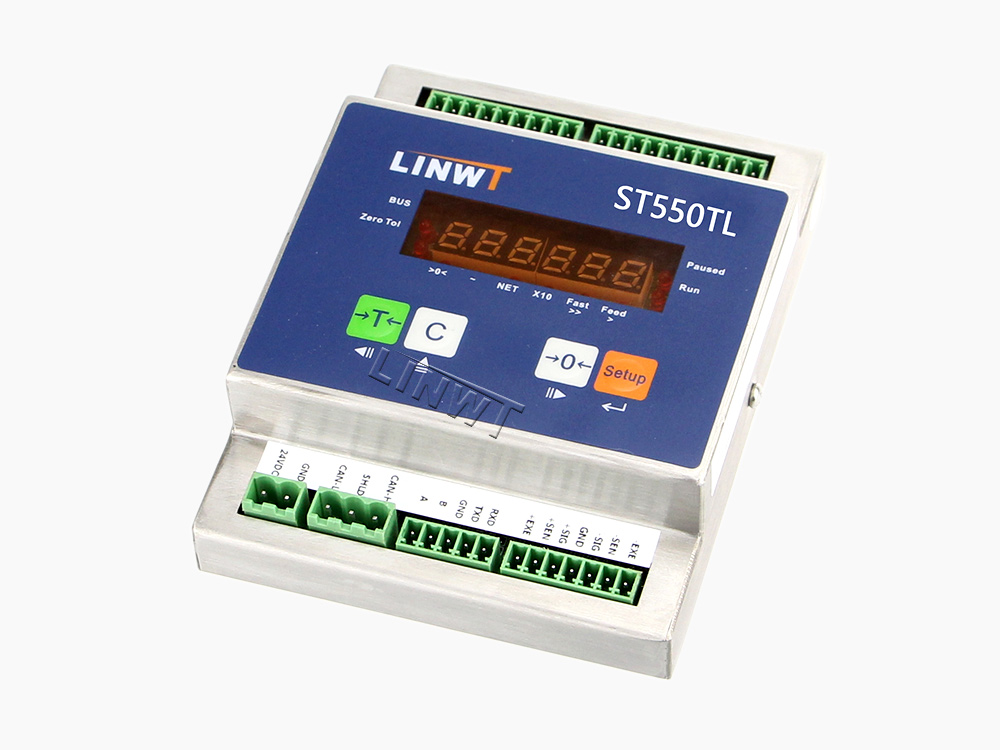

Display |
6 bit red LED display |
|
Calibration And function |
Calibration ：weight-free&weight calibration Filter：Multistage dynamic digtal filter, zero-tracking |
|
AD converter |
Σ/Δ24 bit AD converter, analog and digtal fitering AD sampling rate：400HZ |
|
IO |
8IN8OUT |
|
Nonlinearity |
Better than 0.002%FS |
|
Load cell |
Excitation voltage：5VDC Number：6*350Ω Type：Four-wire or six-wire |
|
Communction |
RS232、RS485 |
|

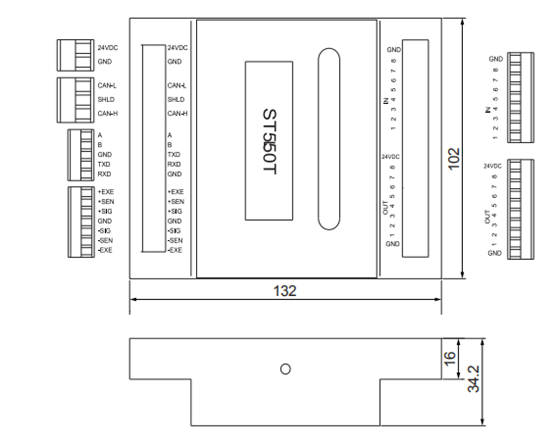

installation |
Din mount |
|
Operating temperature |
-10℃-40℃, non-condensing Housing material：304stainless steel power：24VDC |
●Support 1 loadcell port, up to 4x350 ohm load cells
●Spport 1RS232,1RS485 Serial communication, support MODBUS-RTU
●Multistage dynamic digital filter, meet the demand of high speed dynamic weighing
●Resistance to electromagnetic interference, Shock resistant
●Simple comparison set point,Sequence control set point
●Weight control set point
●400Hz / 200Hz /100Hz A/D updating rate
●High speed dynamic check weighing, 4 materials 2 speeds batching
●Support 16 grades sorting function
