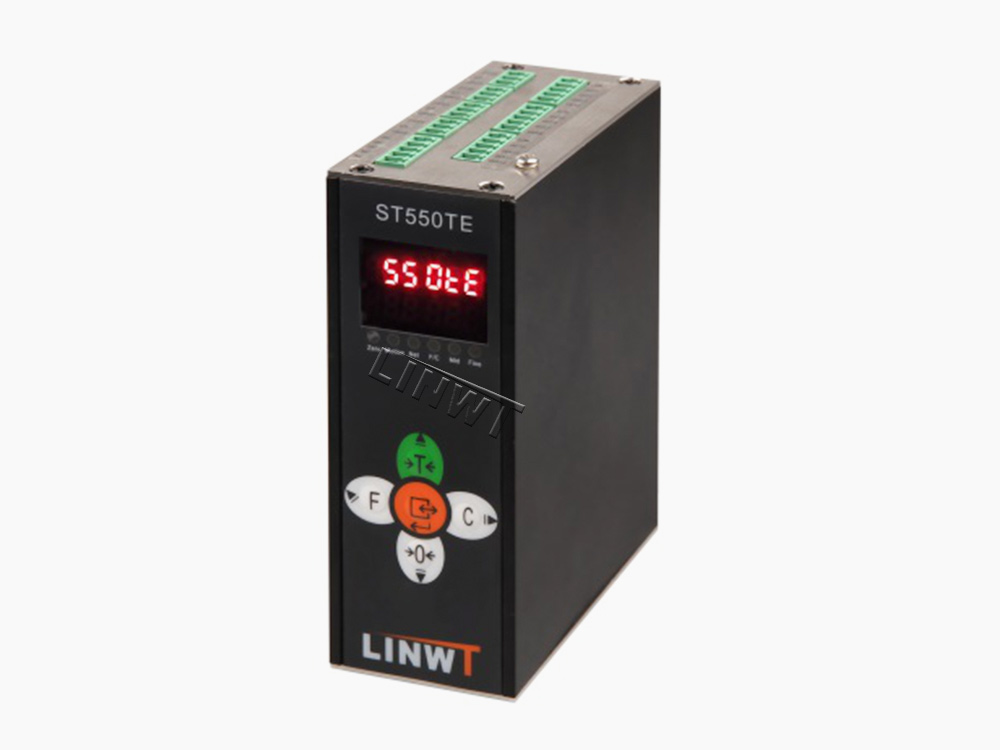

Adopting theDelta-sigma analog-to-digital conversion and digital filter processing technology. It is very easy to build a master/slave controlling system via RS232/485 serial port、Profinet、Modbus-TCP、Ethernet/IP and PLC host devices.
Technical parameters
|
Division |
100,000 |
|
Display |
6 bit red LED |
|
AD converter |
Σ/Δ24 bit AD converter, analog and digtal fitering AD sampling rate：400HZ |
|
Calibration And function |
Calibration ：weight-free&weight calibration Filter：Multistage dynamic digtal filter, zero-tracking |
|
IO |
4IN6OUT |
|
Nonlinearity |
Better than 0.002%FS |
|
Load cell |
Excitation voltage：5VDC Number：6*350Ω Type：Four-wire or six-wire |
|
Communction |
RS232, RS485 |
|
installation |
Din mount |
|
Operating temperature |
-10℃-40℃，non-condensing Housing material：304stainless steel power：24VDC |
|
Options |
Modbus-Tcp、Profinet、Ethernet/IP |
Outline Dimension
Feature
●Support 4 loadcell port, up to 4x350 ohm load cells
●Resistance to electromagnetic interference, Shock resistant
●Simple comparison set point, Sequence control set point weight control set point
●400Hz / 200Hz /100Hz A/D updating rate
●High speed dynamic weight checking function
