Adopting theDelta-sigma analog-to-digital conversion and digital filter processing technology. It is very easy to build a master/slave controlling system via RS232/485 serial port with HMI and PLC
Technical parameters
|
Division |
150,000 |
|
Display |
128*64 OLED display |
|
AD converter |
Σ/Δ24 bit AD converter, analog and digtal fitering AD sampling rate：400HZ |
|
Calibration And function |
Calibration ：weight-free&weight calibration Filter：Multistage dynamic digtal filter, zero-tracking |
|
Nonlinearity |
Better than 0.002%FS |
|
Load cell |
Excitation voltage：5VDC Number：6*350Ω Type：Four-wire or six-wire |
|
Communction |
RS232、RS485 |
|
installation |
Panel mount |
|
Operating temperature |
-10℃-40℃, non-condensing Housing material：304stainless steel power：24VDC |

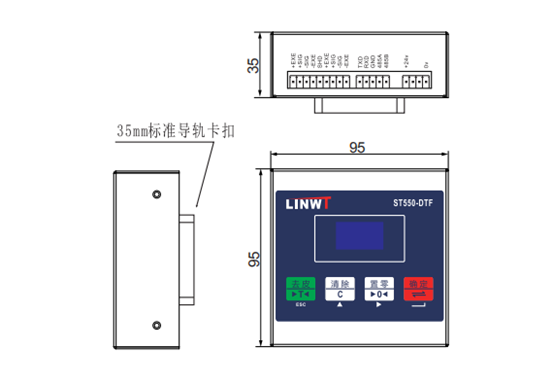

Outline Dimension
Feature
●Double AD Channel
●Up to 400Hz weight updating rate
●Support 2 loadcell port, up to 4x350 ohm load cells2
●Spport 1RS232, 1RS485 Serial communication
●Support MODBUS-RTU
●400Hz / 200Hz /100Hz AD updating rate
●Multistage dynamic digital filter, meet the demand of high speed dynamic weighing
●Resistance to electromagnetic interference,Shock resistant
