ViaRS232/485 serial port, it realizes a single or many sets of network control system, the historical data automatically is deposited in the report and can export the EXCEL files via USB
|
Division |
150,000 |
|
Display |
7-inch tft touch screen display |
|
AD converter |
Σ/Δ24 bit AD converter,analog and digtal fitering AD sampling rate：400HZ |
|
Calibration And function |
Calibration ：weight-free&weight calibration Filter：Multistage dynamic digtal filter,zero-tracking I/O：8IN8OUT |
|
Nonlinearity |
Better than 0.002%FS |
|
Load cell |
Excitation voltage：5VDC Number：6*350Ω Type：Four-wire or six-wire |
|
Communction |
RS232、RS485 |
|
installation |
Panel mount |
|
Operating temperature |
-10℃-40℃，non-condensing Housing material：304stainless steel power：24VDC |
|
options |
8IN8OUT、Modbus-TCP、Ethernet IP |

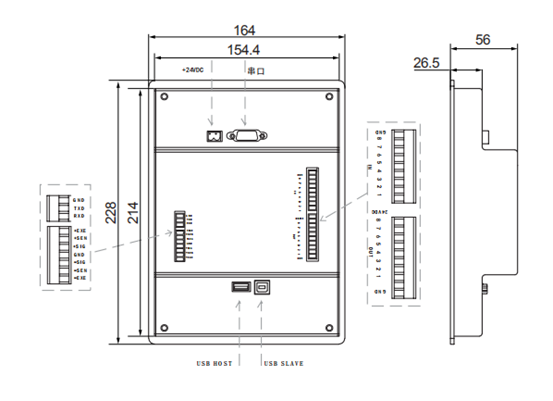

Outline Dimension
Feature
●Multistage dynamic digital filter, meet the demand of high speed dynamic weighing
●Support weight-free calibration, weight calibration
●Resistance to electromagnetic interference, Shock resistant
●Support multiple options
●Spport 1 RS232, 1RS485 Serial communication, support MODBUS-RTU
●Sequence control set point
●High speed force measurement
●High speed dynamic check weighing
●Thousands of Formulas storage, Hundreds of thousands of data storage, support USB import and export

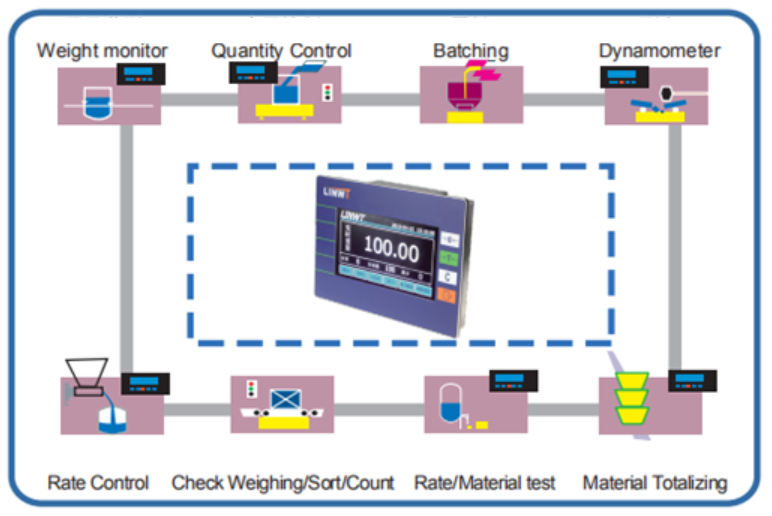

Application
