The equipment is a large range and high-precision online weight detection equipment. The system adopts the dynamic weighing method to weigh the produced and packaged products to the weighing scale through the transmission medium, and to weigh and inspect the weight of each package. Products that do not meet the requirements of the weight range will be automatically removed from the production line. The Check weighing does not need to interrupt the product flow when completing these functions, and the operator does not need to intervene in the production process. Applicable to food, grain and oil, medicine, chemical, daily chemical, hardware, building materials industries

Feature:

●Customized Check-weigher ,Suitable for non-standard applications with unique software and mechanical requirements.

●Data statistics, weight data reports, test curves and other functions, which is convenient for production management.

●Static and dynamic calibration to eliminate the impact of dynamic weighing.

●High-speed AD processing module, automatic zero tracking function.

●The conveyor speed can be adjusted independently according to the speed of the production line, effectively meeting the speed docking requirements of the on-site conveyor line.

●Parameter power-down hold function and user authority management operation.

●External RS232 and RS485 communication interfaces can easily form a communication network with PLC or PC on peripheral equipment.

Application:

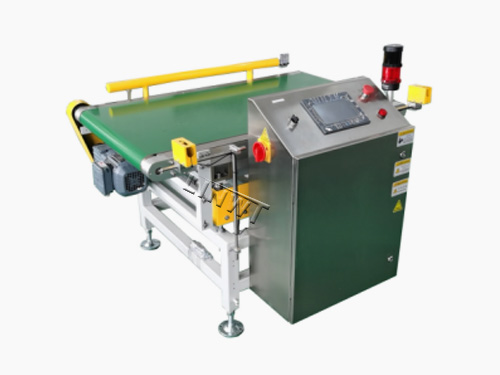

●25kg-60kg belt recheck-weigher

●Small range three-stage type

Recommended instrument：

ST550THST550TLID120-PLST550TE

Belt recheck-weigher	0-25kg： Accuracy≤±10g, speed≤ 50m/min 25-60kg： Accuracy≤±20g,speed≤50m/min
Small range three-stage type	0g-500g： Accuracy≤±0.5g,speed≤80m/min 500g-2000g： Accuracy≤±1g,speed≤80m/min 2kg-5kg： Accuracy≤±2g,speed≤80m/min 5kg-10kg： Accuracy≤±5g,speed≤80m/mi
