Adopting theDelta-sigma analog-to-digital conversion and digital filter processing technology. It is very easy to build a master/slave controlling system via RS232/485 serial port with PLC host devices.
Technical parameters
|
Division |
100000 |
|
Display |
6 digit LED display |
|
AD converter |
Σ/Δ24 bit AD converter, analog and digtal fitering AD sampling rate：400HZ |
|
Calibration And function |
Calibration ：weight-free&weight calibration Filter：Multistage dynamic digtal filter, zero-tracking |
|
Nonlinearity |
Better than 0.002%FS |
|
Load cell |
Excitation voltage：5VDC Number：4*350Ω Type：Four-wire or six-wire |
|
Communction |
RS232 |
|
Installation |
Panel mount |
|
Operating temperature |
-10℃-40℃，non-condensing Housing material：ABS/304 stainless power：9VDC |
|
Options |
IO、AN、485 |
|
Mounting type |
Pole mount、wall mount |

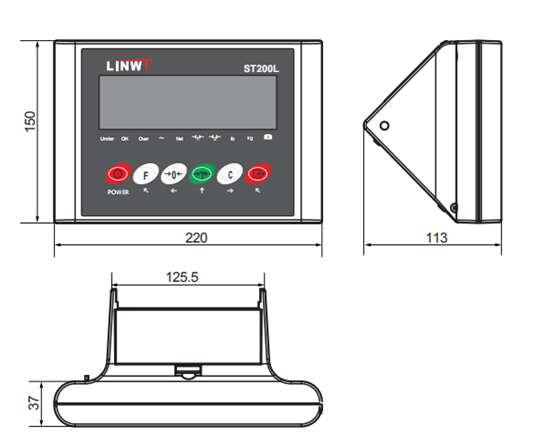

Outline Dimension
●Multistage dynamic digital filter, meet the demand of high speed dynamic weighing
●Resistance to electromagnetic interference、Shock resistant
●ABS (IP54) or Stainless steel(IP65)
●Basic weighing function: zero、tare、clear and print
●Automatic print, accumulative print
●Function：X10、check sorting、counting、animal weighing、Percentage
●Battery low voltage alarm, automatic shutdown function
