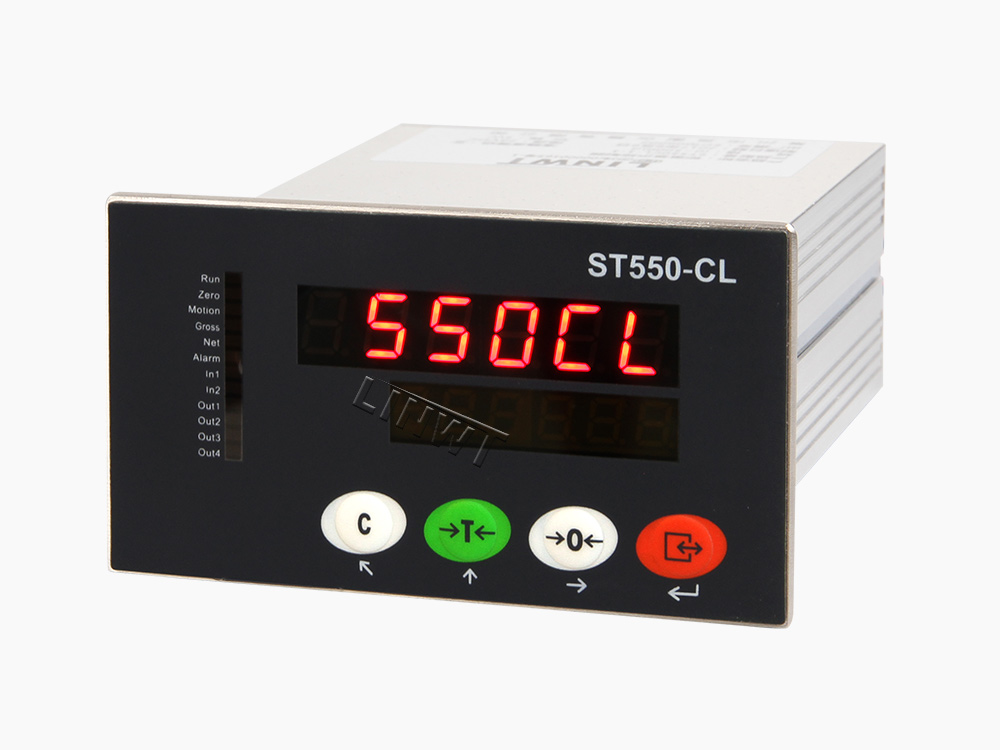

Adopting the Delta-sigma analog-to-digital conversion and digital filter processing technology. It is very easy to build a master/slave controlling system via RS232/485 serial port with PLC host devices.
Technical parameters
|
Division |
100000 |
|
Display |
Dual line LED display |
|
AD converter |
Σ/Δ24 bit AD converter, analog and digtal fitering AD sampling rate：960HZ |
|
Calibration And function |
Calibration ：weight-free&weight calibration Filter：Multistage dynamic digtal filter, zero-tracking、 |
|
Nonlinearity |
Better than 0.002%FS |
|
Load cell |
Excitation voltage：5VDC Number：6*350Ω Type：Four-wire or six-wire |
|
Communction |
RS232, RS485 |
|
installation |
Panel mount |
|
Operating temperature |
-10℃-40℃, non-condensing Housing material：Aluminum shell power：24VDC |
|
Options |
IO、AN |
Outline Dimension
●Support 1 loadcell port, up to 4x350 ohm load cells
●Spport 1RS232, 1RS485 Serial communication support MODBUS-RTU
●Multistage dynamic digital filter, meet the demand of high speed dynamic weighing
●960HZ / 480Hz / 240Hz / 120Hz AD updating rate
●Weight triggers force control, I/O triggers force control
●Support Sample hold、AV-hold、Peak capure、 Knee hold、interval detection
