DWS system adopts automatic measurement and code reading technology, which can be used together with high-speed conveying system to ensure accurate measurement of weight, volume and barcode information; Dynamic measurement technology. Weight, volume and bar code are all measured dynamically, realizing online real-time measurement.

●The throughput can reach 6000 pieces/hour

●Package weight：10g-60kg

●Wrapping volume：≤1000*800*800mm

●Display division：0.005kg

●Weighing accuracy：≤±50g（Under good mechanical coordination and site conditions）

●Induction efficiency：The throughput can reach 6000 pieces/hour

●Equipment length：scale A 1000mm，scale B 600mm

●Belt speed：Up to 2.5 m/s

●Communction type：RS485、RS232 or RJ45，

●?The network can support UDP message transmission and web page setting parameters, with more excellent anti-interference capability, and can realize remote equipment diagnosis and maintenance

●Parameter setting：The indictors can automatically adapt parameters according to the site environment, without professional debugging

●Exception handling: there is an advanced processing algorithm for the problem of duplicate reservation, which can handle the duplicate reservation in time

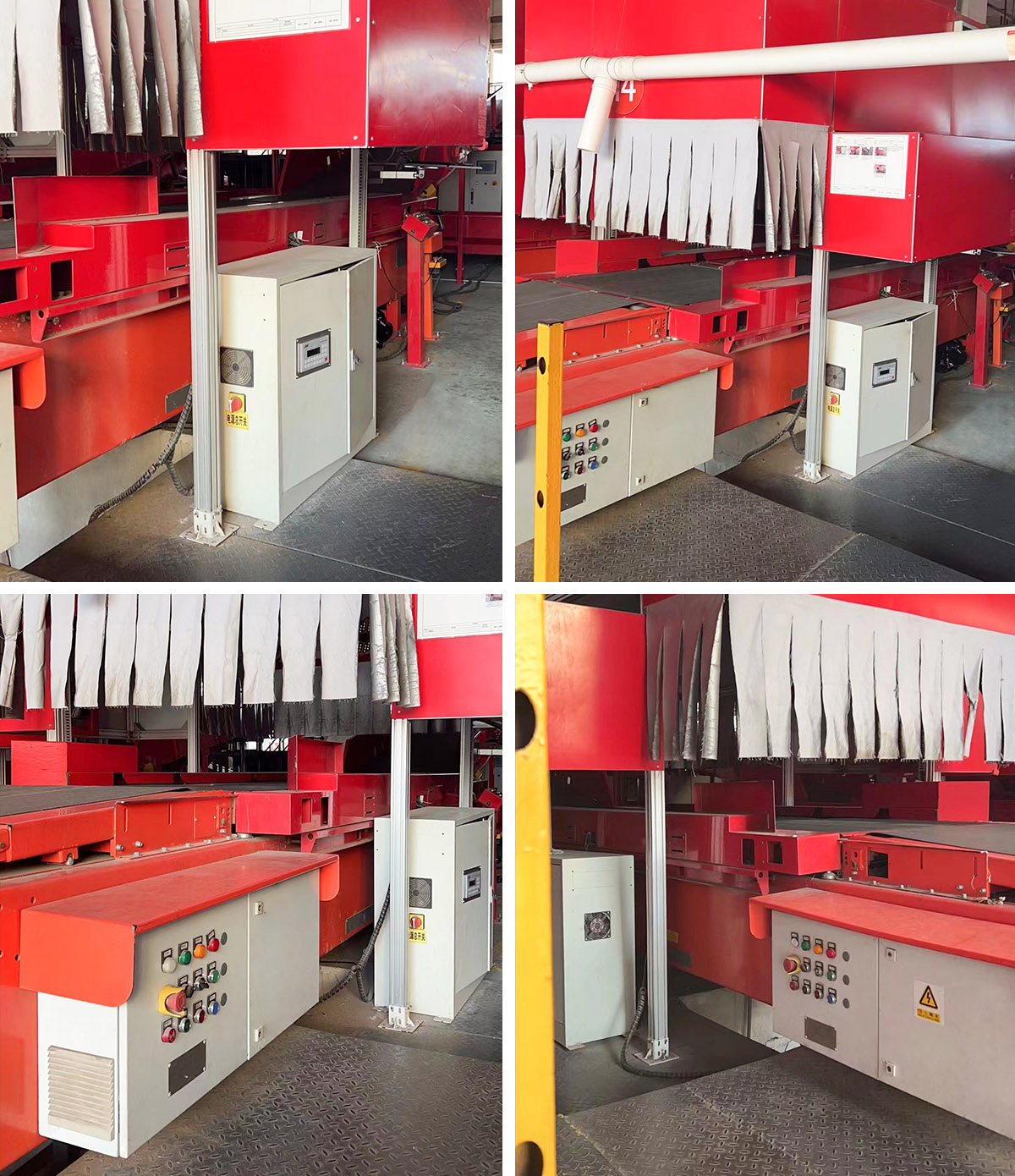

Application case:

Dual scale recommended indictors：ST550WST550KD2

Single scale recommended instrument：ST550PWL
